  1. Equipment Installation

Reader

PreviousMONEI

Last updated 4 months ago

To connect RFID-reader Matrix III RD-ALL to the SmVend Smart Connector controller, please do the following steps:

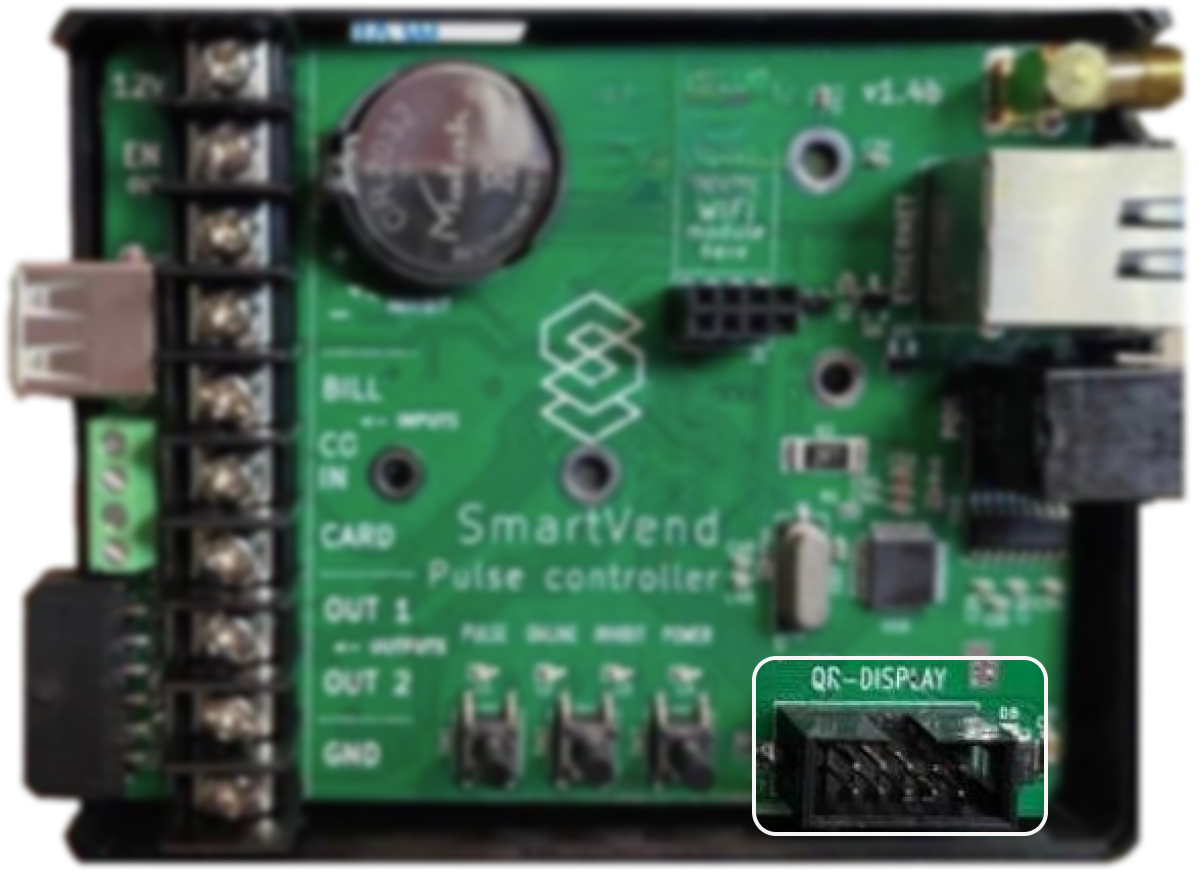

  1. Insert the connector into the QR-DISPLAY (IDC-10) connector on the controller

  1. Connect the red wire to the EN OUT on the controller's contact block
